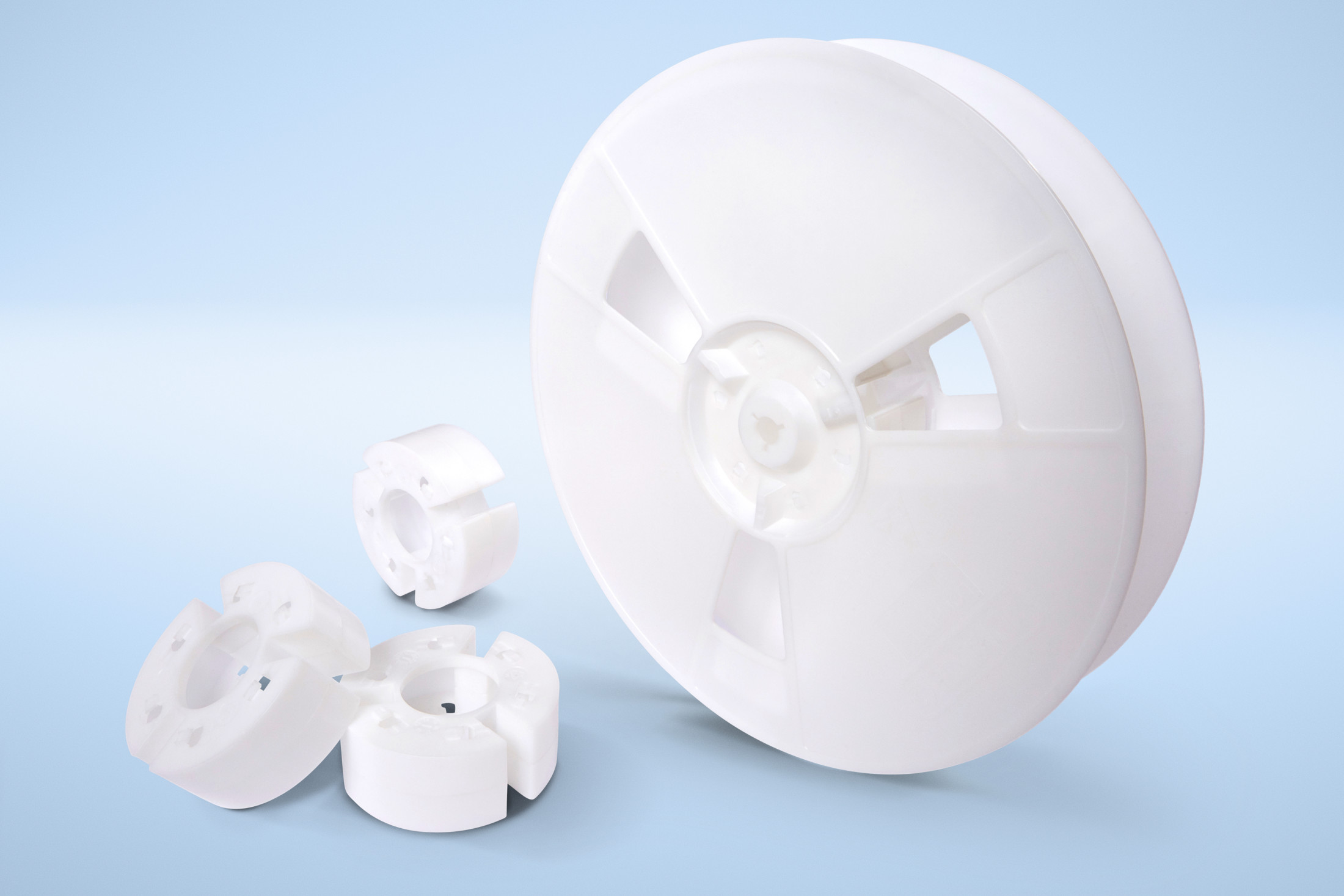

LOKREEL® Hub Extender

Advantek’s LOKREEL® Hub Extenders are designed to enable more width options and maintaining a flat hub surface after assembly, while keeping the advantages of LOKREEL flange shipments. Extenders use the same high-impact polystyrene material as the LOKREEL® flanges. The hub extenders have the same inter-locking core pins as 13″ LOKREEL® Pro, Lite, and Ultra.

  • Diameter options of 4″, 7″, and 6″
  • Extenders enable wide reels to be shipped in halves, decreasing shipping costs by up to 70%
  • The “Nest-stacking” high density packaging reduces needed storage space by as much as 60%
  • Extender width options of 28, 40, 72, and 104mm, enables reel widths of 36, 44, 56, 72, 88, 104, 120, and 136mm
  • Assembles with simple twisting motion, no gluing or fasteners

Material properties

Property Typical Value Test Method
Tensile Strength 3,500PSI  ASTM D 638
Elongation 40%  ASTM D 638
Izod Impact Strength 21KJ/m2  ASTM D 256
Flexural Modulus 270,000PSI  ASTM D 790
Heat Distortion Temperature  80°C  ASTM D 648
Specific Gravity   1.04  ASTM D 792
Surface resistivity  ≥1.0E5, <1.0E12 Ohms/square  ASTM D 257
 Color  White
