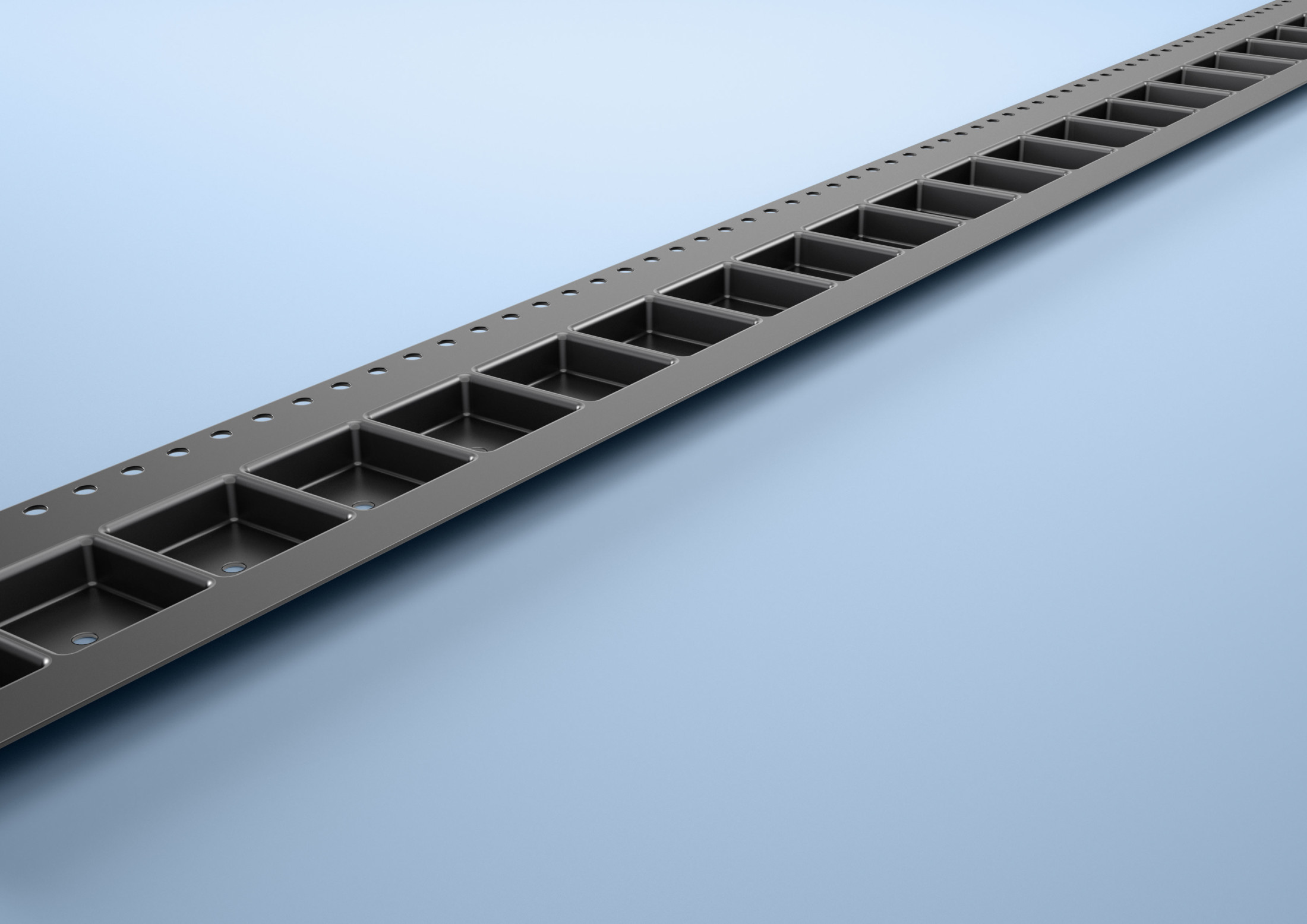

Polystyrene Black Tri-Laminate – D-Series

Advantek’s mid-line D-Series Tri-Laminate PS+C (polystyrene with carbon) material provides an economical alternative to the C-Series material. This modified static dissipative polystyrene offers good strength and stability over time and temperature variations. Its uniform surface texture offers a consistently flat sealing area and is suitable for use with a wide variety of pocket designs.

  • Suitable for standard and complex pocket designs
  • Available in widths from 8 to 24mm
  • All Advantek carrier tape is manufactured in accordance with current EIA 481 standards to ensure compatibility with tape and reel equipment

Material properties

Property Unit Setup Value Standard
Material Thickness mm  – I – 0.25mm

D – 0.30mm

Gloss @ 60°
GU Shiny 20 – 80 ASTM D523
Matte 3 – 20
Surface Resistance Ohms Shiny 1.0E5 – 1.0E11 ASTM D257
Matte 1.0E5 – 1.0E11
Tensile Strength @ Break Psi Machine Direction 1450 – 4500 ASTM D882
Elongation @ Break % 50 – 100
Glass Transition Temperature °C 10°C/min 110 – 120 ASTM 3418
Density g/cm3 1.0 – 1.5 ASTM D792
Color Black ADV Internal
Transmittance % ASTM D1003
Haze %
