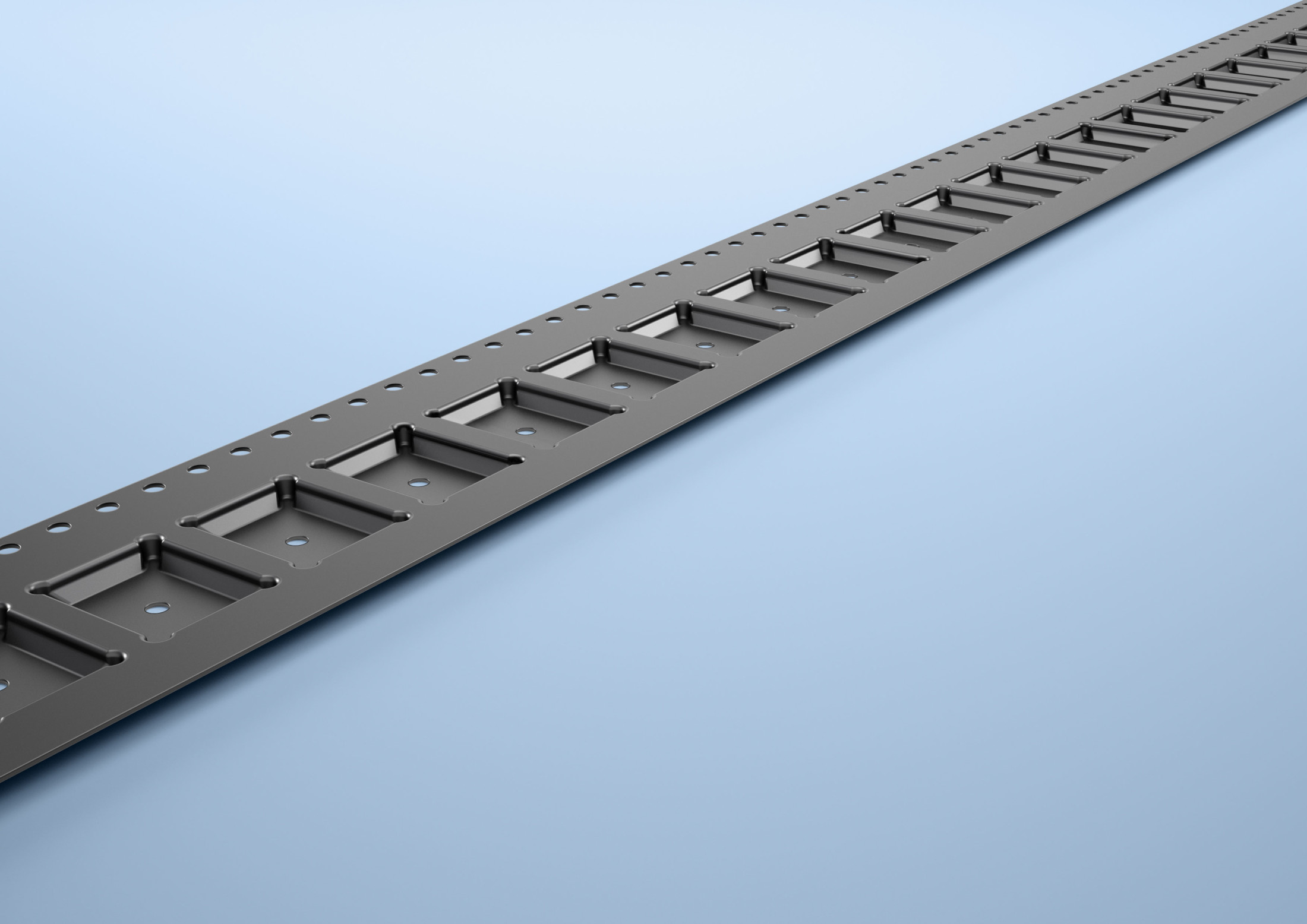

Polystyrene Black Monolayer – P-Series

Advantek’s P-Series PS+C (polystyrene plus carbon) carrier tape is a specially modified static dissipative polystyrene offering good strength and stability over time and temperature variations for a limited range of tape designs. This material is suitable for high volume (>1 million meters per year) carrier tapes at pre-determined standard reel lengths. This P material offers exceptional protection at a lower cost than our standard C material.

  • Perfect for standard pocket designs
  • Available in 0.25mm and 0.30mm thicknesses
  • Optimized for widths of 8mm and 12mm
  • Engineered for high volume processing

Material properties

Property Typical Value Test Method
Material Code – Thickness

PB – 0.25 mm
PC – 0.30 mm

 –
Specific Gravity 1.06 g/cc ASTM D792
Elongation LD 90% ASTM D882
Tensile Strength LD 3840 psi ASTM D882
Vicat Softening 95°C (203°F) ASTM D1525
Surface Resistivity 105-1012 Ω/sq ASTM D257
(Static Dissipative per EIA 541)
