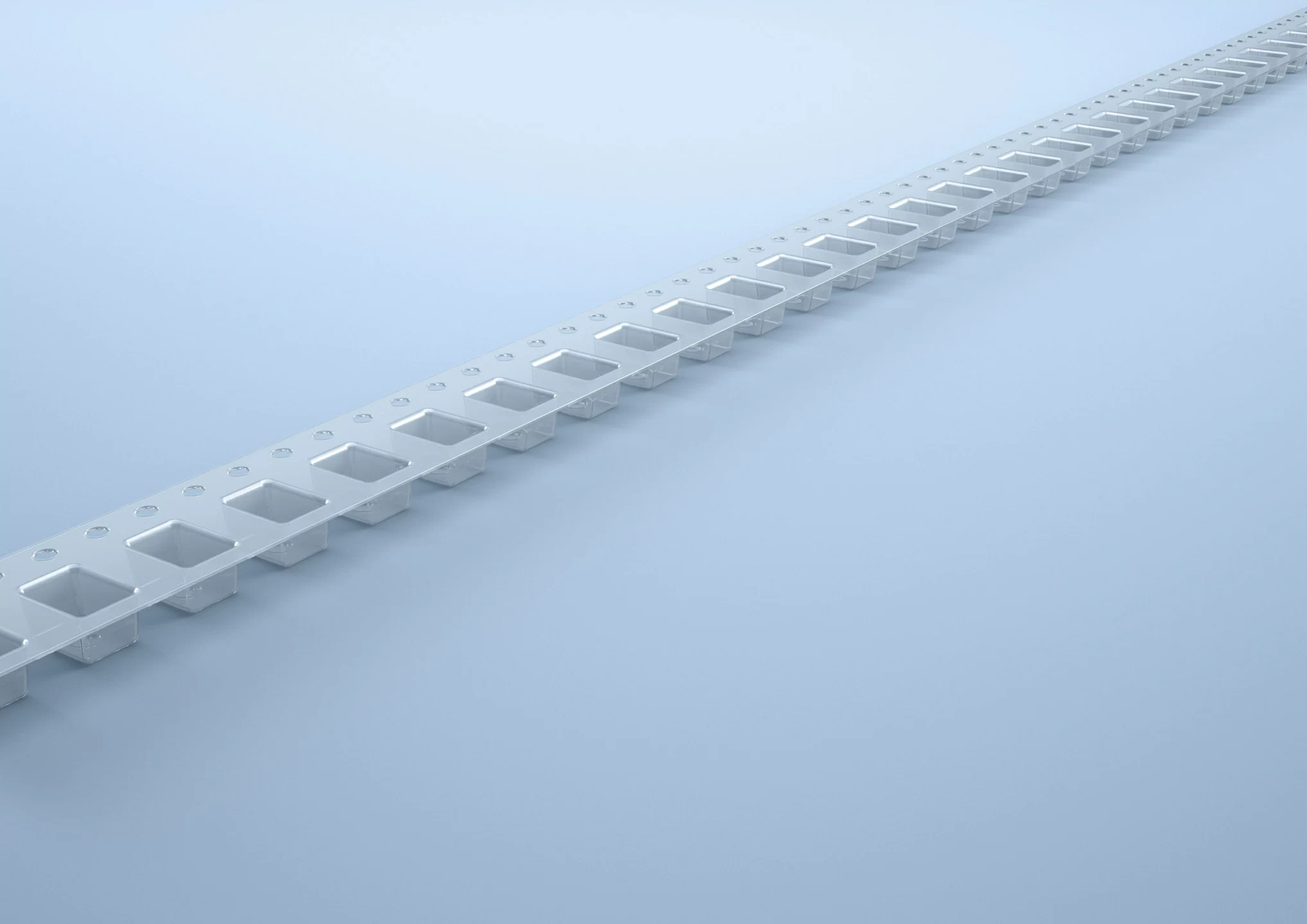

Advantek’s premier Y-Series clear polycarbonate material provides excellent forming performance and strength. This clear insulative material is ideal for passive and mechanical components that are not ESD-sensitive. The material’s high transparency enables easy in-pocket component inspection, while its uniform surface texture provides a consistently flat sealing area.
- Engineering for versatility and strength to support a wide range of pocket sizes and shapes
- Available in 8mm and 12mm wide
- All Advantek carrier tape is manufactured in accordance with current EIA 481 standards to ensure compatibility with tape and reel equipment
Material Properties
| Property | Typical Value | Test Method |
| Material Code – Thickness | YF – 0.21 mm YE – 0.23 mm YB – 0.25 mm |
– |
| Specific Density | 1.20 g/cc | ASTM D792 |
| Tensile Strength, Yield | 65 MPa | ISO 527 |
| Tensile Strain, Break | 70 MPa | ISO 527 |
| Flexural Strength | 98 MPa | ISO 527 |
| Vicat Softening | 141°C (286°F) | ISO 75 |
| Surface Resistance | > 1.0E12 Ohms | STM 11.13 |
