Advantek’s LOKREEL Mini RJ Component packaging reels provide excellent protection when shipping small components packaged in carrier tape, such as bare die and small integrated circuit packages. It‘s made from general-purpose and high-impact polystyrene for added strength and durability. The 7” LOKREEL Mini RJ reels are available in a variety of widths.
- Available in 8, 12, 16, 24 and 32mm widths
- Reel flange accommodates label sizes up to 2 x 4″
- Available in static dissipative (P/N suffix: WT/BL/BK) or with tighter SR (P/N suffix: DBK)

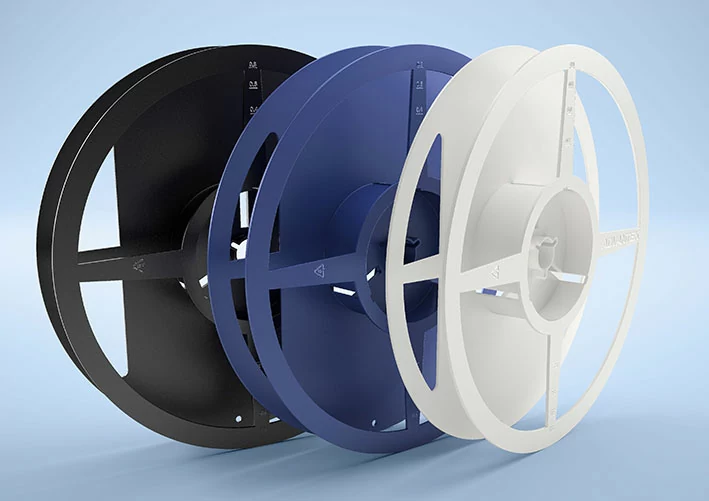

- Reels may be ordered in white, blue, or black
Material Properties
| Property | Typical Value | Test Method |
| Tensile Strength | 20 MPa | ISO 572 |
| Elongation | 40% | ISO 572 |
| Flexural Modulus | 1360 MPa | ISO 178 |
| Heat Distortion Temperature | 77°C | ASTM D 648 |
| Specific Gravity | 1.03 g/cc | ASTM D 792 |
| Surface Resistivity | WT/BL/BK: ≥1.0E5, <1.0E12 Ohms/sq. DBK: ≥1.0E5, <1.0E10 Ohms/sq. |
ASTM D 257 |
