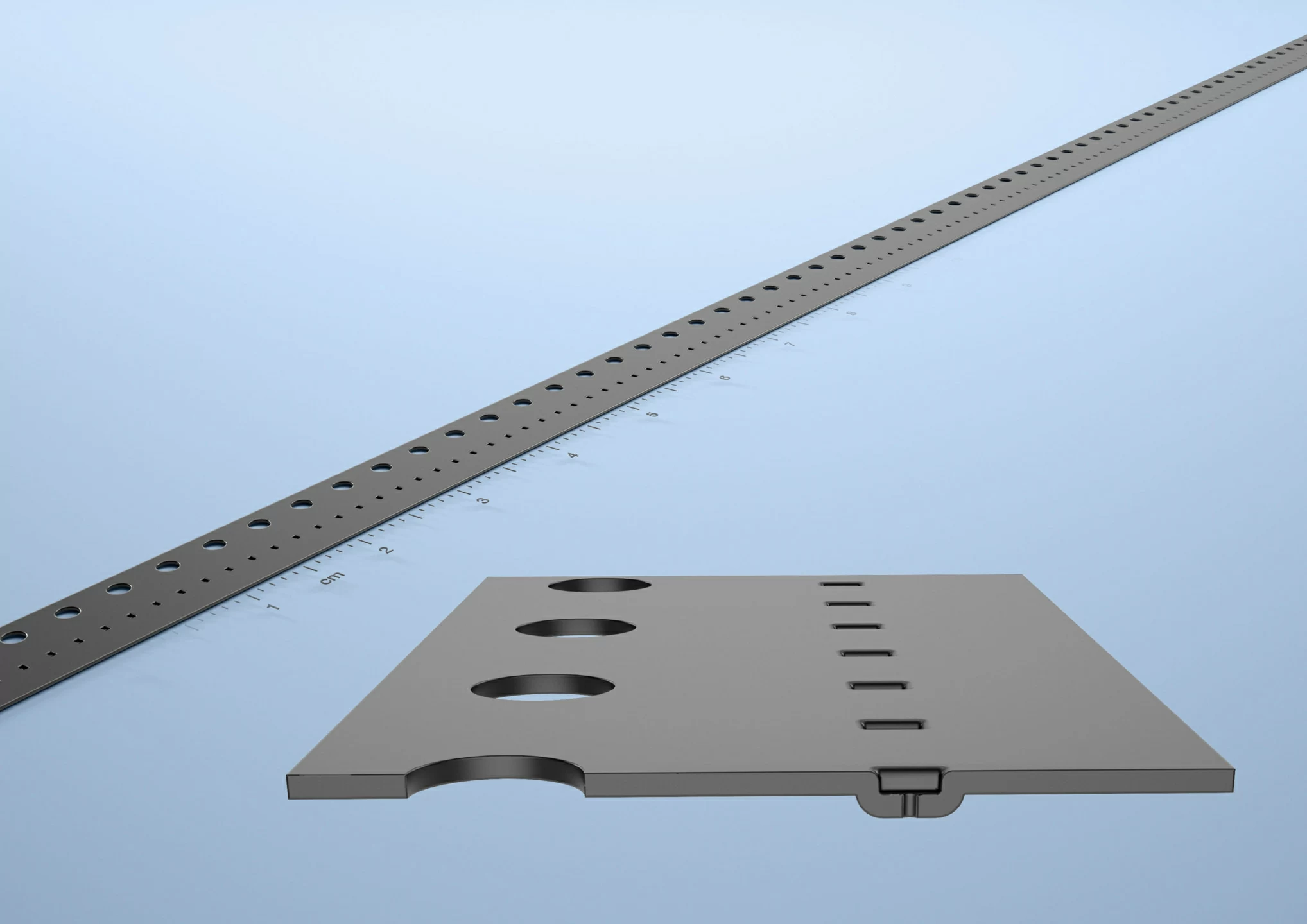

Advantek N-Series Polycarbonate material provides excellent capability for precision design requirements. It is optimized for high-volume 8mm and 12mm tape widths, providing the industry’s leading high-precision solution for tapes requiring extreme accuracy. ESD-safe polycarbonate maintains its flexibility, stability, and strength through time and temperature variations.
- Engineering for high-precision pockets supporting small components, LEDs, and bare die applications
- Engineered for high-volume production.
- Optimized for 8mm and 12mm wide tapes.
- All Advantek carrier tape is manufactured in accordance with current EIA 481 standards to ensure compatibility with tape and reel equipment.
Material Properties
| Property | Unit | Setup | Value | Standard |
| Material thickness | mm | – | NF – 0.21 NE – 0.23 NB – 0.25 |
– |
| Surface resistance | Ohms | – | 1.0E5 – 1.0E11 | ANSI 11.11 / 11.13 |
| Tensile strength @ break | Psi | Machine direction | 6000 – 10,000 | ASTM D638 |
| Elongation @ break | % | 10 – 20 | ||
| Glass transition | °C | 10°C/min | 130 – 145 | ASTM 3418 |
| Density | g/cm3 | – | 1.30 | ASTM D792 |
| Color | – | – | Black | – |
