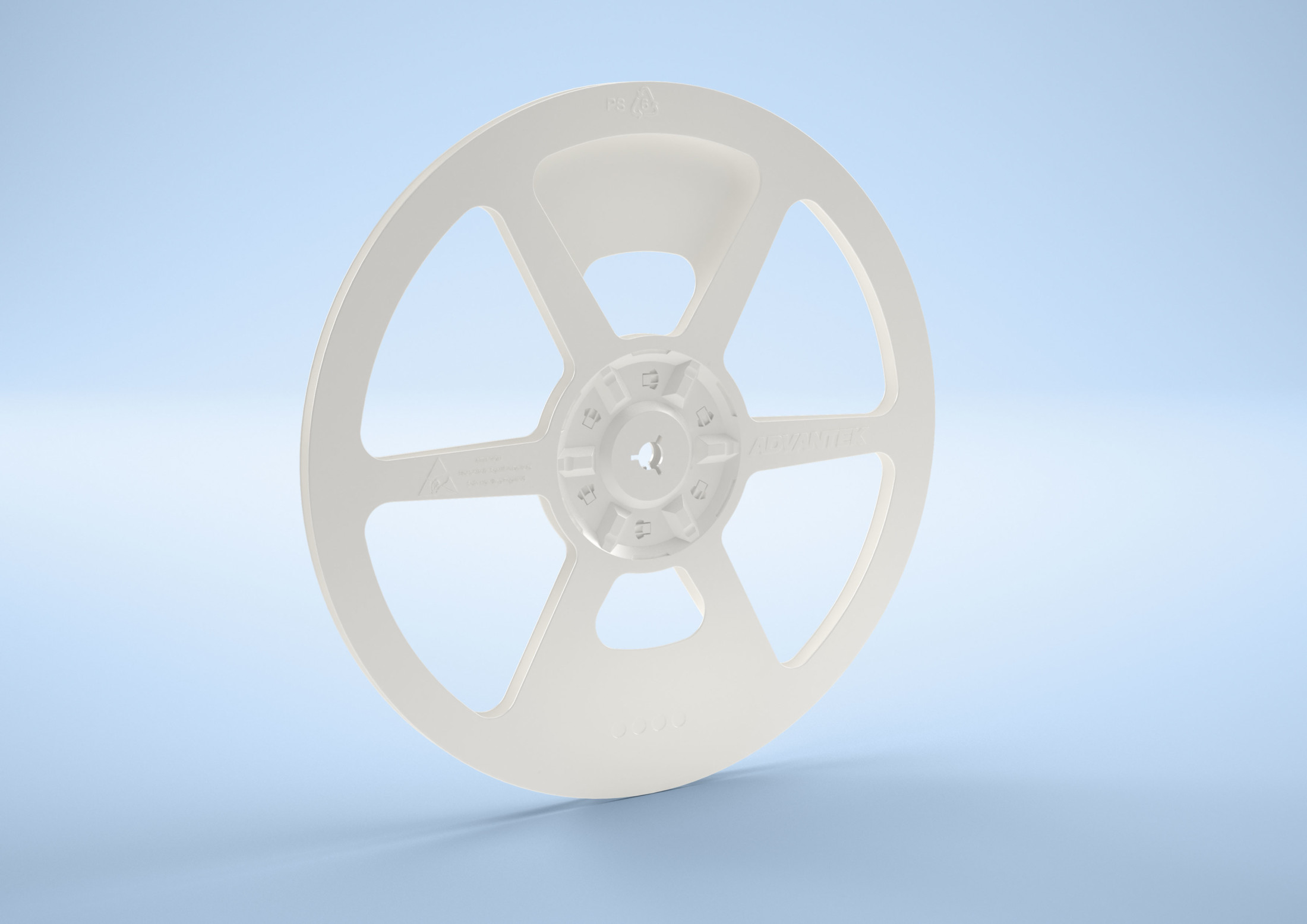

LOKREEL® Trimline – 13″

Advantek’s LOKREEL® Trimline plastic injection-molded packaging reels are an exceptional choice where price is a key concern. LOKREEL® Trimline reels offer an excellent balance between structural integrity, lower weight, and are lower cost than LOKREEL Lite® reels, but keep the same durable hub structure. The flanges have larger windows to reduce the amount of plastic used and support one label as large as 2.4″x4″ (61mm x 102mm) each.

  •  Shipped in halves to decrease shipping costs by up to 70%
  • “Nest-stacked”, high density packaging reduces needed storage space by as much as 60%
  • Halves configuration offers flexibility in managing different reel widths needed during productions from 8mm to 56mm
  • Assembles with simple twisting motion, no gluing or fasteners

Material properties

Property Typical Value Test Method
Tensile Strength 3500 PSI ASTM D 638
Elongation 40% ASTM D 638
Izod Impact Strength 21KJ/m2 ASTM D 256
Flexural Modulus 270,000 PSI ASTM D 790
Heat Distortion Temperature  80°C ASTM D 648
Specific Gravity 1.04 ASTM D 792
Surface Resistivity ≥105, <1012 Ω/sq. ASTM D 257

Download files
