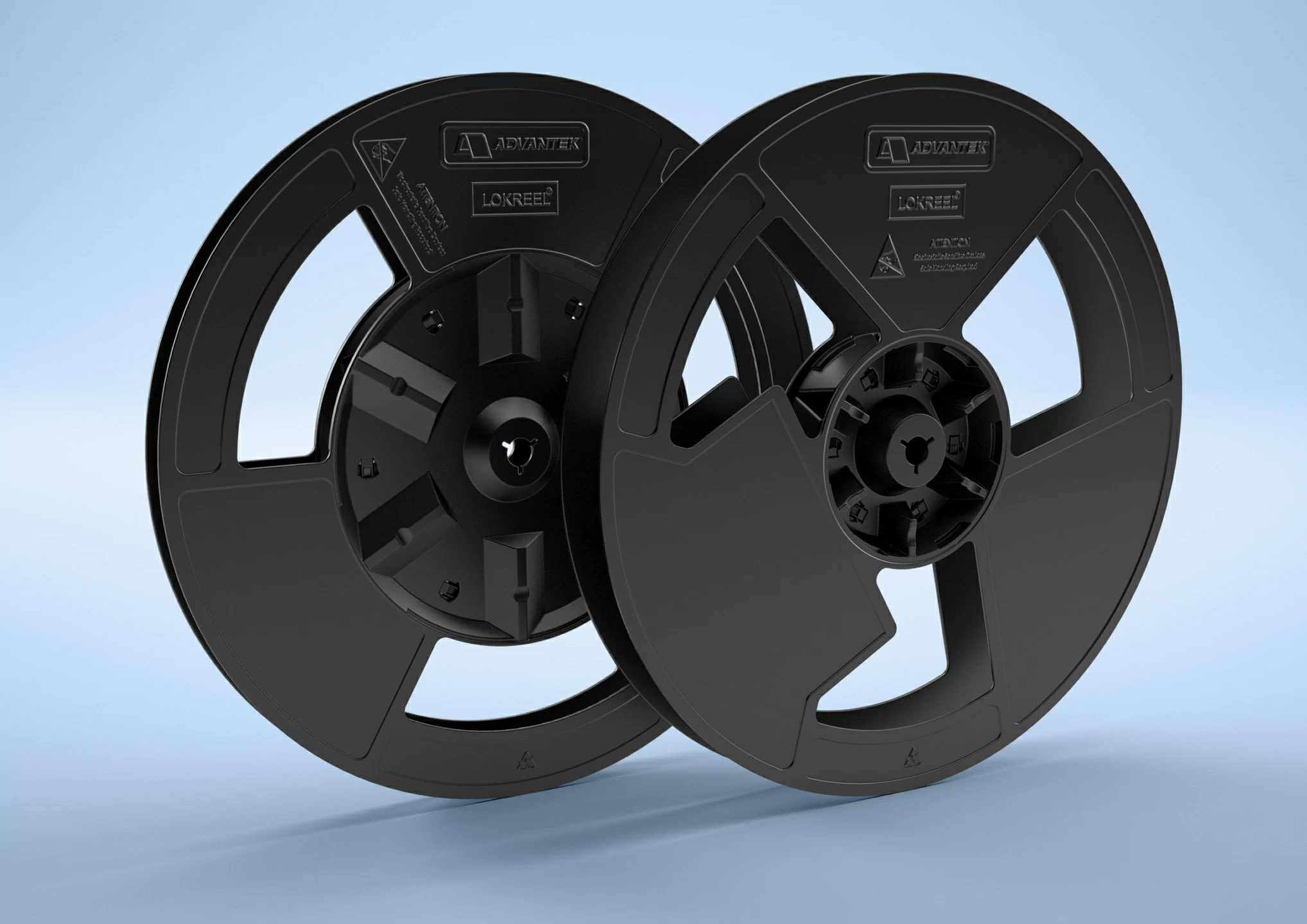

Advantek‘s LOKREEL Lite Eco static dissipative component packaging reels are ideal for the shipment and storage of any component packaged in carrier tape. These reels are designed to achieve a combination of structural integrity and lower weight. This, in combination with the use of HIPS regrind material, offers a high level of quality at a lower cost.
- Shipped in halves to decrease shipping costs by up to 70%
- “Nest-stacked”, high-density packaging reduces needed storage space by as much as 60%
- Halves configuration offers flexibility in managing the different reel widths needed during production – from 8 to 56mm
- Reels assemble with a simple twisting motion – requiring no gluing or fasteners
- RoHS 1.0 compliance
Material Properties
| Property | Typical Value | Test Method |
| Tensile Strength | 3,500 PSI | ASTM D 638 |
| Elongation | 20% | ASTM D 638 |
| Flexural Modulus | 280,000 PSI | ASTM D 790 |
| Heat Distortion Temperature | 71°C | ASTM D 648 |
| Specific Gravity | 1.06 | ASTM D 792 |
| Surface Resistivity | ≥105, <1012 Ω/sq. | ASTM D 257 |
