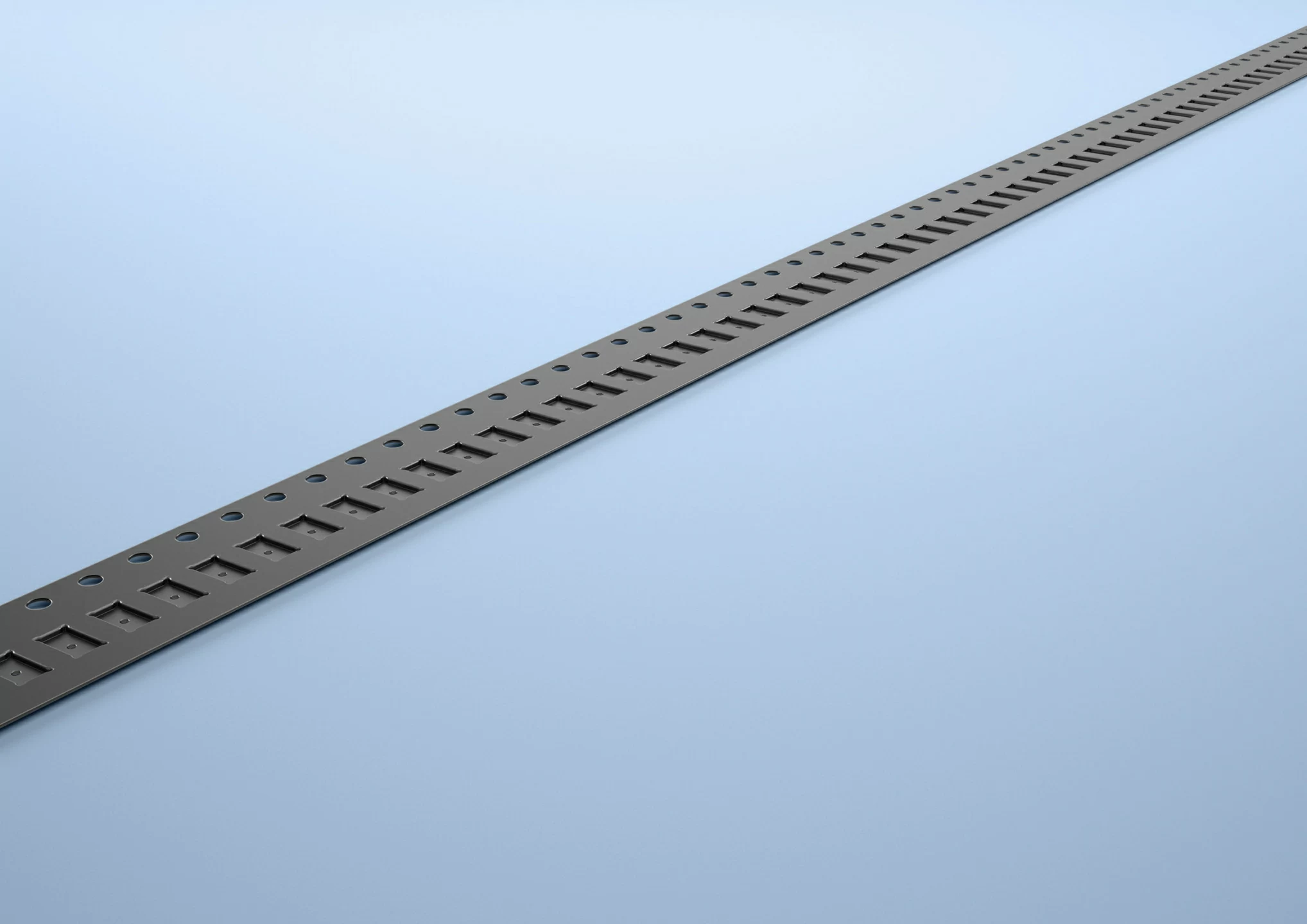

Advantek’s B-Series Tri-Laminate Polycarbonate (PC) carrier tape is a specially modified static dissipative polycarbonate material – offering excellent strength and high precision formability. For high-speed taping applications, this material economically offers strength, protection, and performance comparable to homogeneous polycarbonate materials.
It provides the superior formability needed for high-precision applications, like bare die, requiring sharp pocket features and flat pocket bottoms.
- Ideal for high-precision designs
- Suitable for bare die applications
- Available in standard and cleanroom processing
- All Advantek carrier tape is manufactured in accordance with current EIA 481 standards to ensure compatibility with tape and reel equipment
Material Properties
| Property | Unit | Setup | Value | Standard |
| Material Thickness | mm | – |
BA – 0.20mm BB – 0.25mm BC – 0.30mm |
– |
| Gloss @ 60° |
GU | Shiny | 45 – 90 | ASTM D523 |
| Matte | 8 – 30 | |||
| Surface Resistance | Ohms | Shiny | 1.0E5 – 1.0E11 | STM 11.13 |
| Matte | 1.0E5 – 1.0E11 | |||
| Tensile Strength @ Break | Psi | Machine Direction | 1500 – 8000 | ASTM D882 |
| Elongation @ Break | % | 15 – 25 | ||
| Glass Transition Temperature | °C | 10°C/min | 110 – 120 | ASTM 3418 |
| Density | g/cm3 | – | 1.0 – 1.5 | ASTM D792 |
| Color | – | – | Black | ADV Internal |
| Transmittance | % | – | – | ASTM D1003 |
| Haze | % | – | – |
